ChatGPT said:
To match your antenna, which has an impedance of 79.54−j4.436Ω, to a 50-ohm coaxial cable, you need to adjust the impedance so that it's as close as possible to 50 Ω50Ω. You can do this by using a matching network. The three main types of matching networks typically used are:

LC Matching Network (L-network)
Transmission Line Transformers
Balun or Unun

Let's break down your impedance and explore an L-network as a possible solution:
1. Impedance Overview

The impedance of your antenna is complex, consisting of:

Real part (resistance): 79.54Ω
Imaginary part (reactance): −j4.436Ω (indicating capacitive reactance)

The goal is to transform this complex impedance to 50Ω, which is purely resistive.
2. L-Network

An L-network can either step up or step down impedance, depending on its configuration. For this case, since the antenna impedance (79.54) is higher than 50Ω, you’ll likely need a step-down L-network.
Steps:

Cancel the reactive part: First, you need to cancel out the capacitive reactance (−j4.436Ω) by adding an inductor in series with the antenna. The inductive reactance of the inductor should be equal but opposite to the capacitive reactance, i.e., j4.436Ω.

To find the required inductance:
X = 2πfL

Solving for LL:
L = 4.436 / 2πf

where f is the operating frequency in Hz.

Match the resistive part: After canceling the reactance, the remaining impedance is purely resistive (79.54Ω). You can then use either a capacitor or an inductor to match this resistive value to 50Ω.

3. Transmission Line Transformer or Balun/Unun

Alternatively, you could use a transformer or a balun/unun designed for impedance transformation. A 4:1 or 1.5:1 transformer could bring the impedance down closer to 50Ω, depending on the design.

Would you prefer calculations for a specific matching method or an example with a different approach? Let me know your preferred operating frequency for more precise component values!

I asked:
Explain how to match the purely resistive part

ChatGPT said:
To match the purely resistive part of your antenna's impedance (after you’ve canceled the reactive part), you can adjust the resistive component (79.54Ω) to match the 50-ohm coaxial cable. Since 79.54 Ω79.54Ω is higher than 50 Ω50Ω, we need to step down the impedance.
Matching the Resistive Part

Here’s how you can achieve that using a simple matching network:
1. LC Matching Network (L-Network)

An L-network consists of a combination of inductors and capacitors arranged in either a series-parallel or parallel-series configuration. To step down the impedance from 79.54Ω to 50Ω, we use a series capacitor and a parallel inductor (a high-to-low impedance matching network).
Configuration: Series Capacitor and Parallel Inductor

The capacitor is placed in series with the antenna.
The inductor is placed in parallel to the antenna.

Key Formulas:

For an L-network, the values of the capacitor and inductor are calculated based on the transformation ratio and the operating frequency.

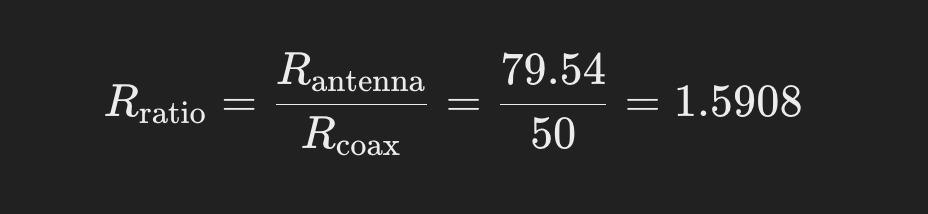

The transformation ratio is:

This ratio tells us the degree to which the impedance needs to be stepped down.

Now we calculate the component values.

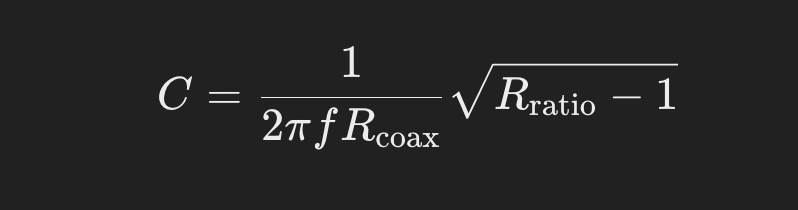

1. Series Capacitor (C): The capacitor helps cancel the excess impedance and is calculated using:
where:

f is the frequency in Hz
Rcoax= 50 Ω
Rratio=1.5908

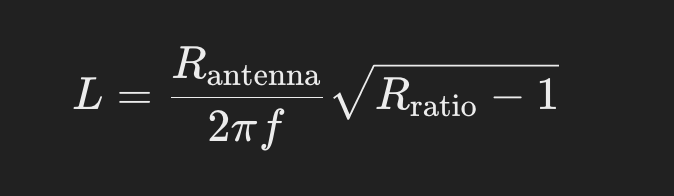

2 Parallel Inductor (L): The inductor is placed in parallel to match the higher impedance to the lower impedance. Its value is given by:

Both component values depend on the operating frequency, so you would need to specify the frequency to calculate the exact values of CC and LL.

2. Transformers (Balun/Unun)

A simpler alternative would be using a transformer such as a balun or unun. These devices can transform impedances with specific ratios. For instance:

A 1.5:1 balun or unun would step down 79.54Ω closer to 50Ω.
A 4:1 balun can also be used but would bring the impedance down too low.

Would you like to proceed with specific values for the components based on a particular frequency? Let me know if you prefer detailed calculations for the L-network!

I asked:
How do you make a 1.5:1 balun

ChatGPT said:
A 1.5:1 balun (also called an unun in the case of unbalanced-to-unbalanced connections) is designed to match an impedance ratio of 1.5:1, which means it can transform an impedance of around 75 ohms to 50 ohms—ideal for matching your antenna's resistive component (79.54 ohms) to a 50-ohm coaxial cable.
Key Concepts Behind a 1.5:1 Balun

A balun (balanced to unbalanced) or an unun (unbalanced to unbalanced) typically works as an impedance transformer. The 1.5:1 impedance ratio can be achieved by using transmission line transformers, such as toroidal transformers wound with a specific turns ratio.
Step-by-step Guide to Making a 1.5:1 Transformer Using a Toroid Core
1. Materials Needed:

Ferrite toroid core (choose a core suitable for the frequency range of operation, e.g., type 43 or 61 ferrite for HF)
Magnet wire or coaxial cable (for winding the transformer)
Enclosure to house the balun/unun (optional)

2. Determine the Turns Ratio:

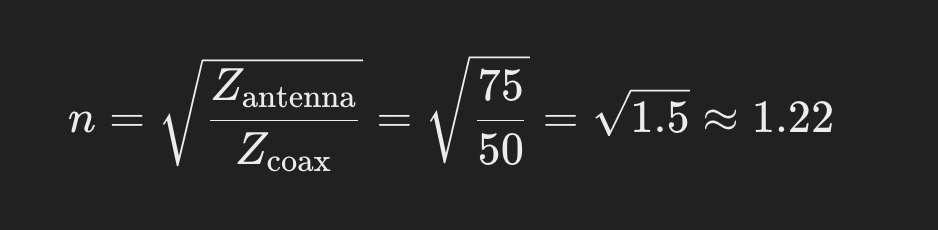

For a 1.5:1 impedance transformation, the turns ratio needs to reflect the square root of the impedance ratio.

This means that the number of turns on the primary winding should be 1.22 times the number of turns on the secondary winding.
3. Wind the Transformer:

There are two common methods to create this type of impedance transformer:

Auto-transformer (Unun) method.
Two-winding transformer method (balun).

Let's cover both approaches:
A) Auto-transformer (Unun) Method

The auto-transformer method involves a single winding with a tap that splits the impedance transformation. This is a simpler design for unbalanced-to-unbalanced transformations.
Winding Steps:

Primary Tap: Wind a total number of turns around the ferrite toroid core. Let’s say you use 12 turns for the entire winding.
Tap Placement: Place a tap at 10 turns. The tap is where the 50-ohm coaxial cable connects.
12 turns: Connect to the antenna's 75-ohm side.
10 turns: Connect to the 50-ohm coaxial side.

In this method, the total winding serves as both the primary and secondary, with the tap providing the 1.5:1 impedance transformation.
B) Two-winding Transformer (Balun) Method

For this approach, you’ll use two separate windings on the same core.
Winding Steps:

Primary Winding: Wind the primary winding with, say, 10 turns of wire.
This connects to the 75-ohm side (antenna side).
Secondary Winding: Wind a secondary winding with about 8 turns of wire.
This connects to the 50-ohm coaxial side.

Connections:

The primary winding (10 turns) connects to the antenna’s 75-ohm impedance.
The secondary winding (8 turns) connects to the 50-ohm coaxial cable.
Ensure the windings are tightly coupled on the toroid core to maximize efficiency and minimize losses.

4. Testing and Tuning:

Once you've wound the transformer:

Test the impedance using an SWR meter or antenna analyzer.
You might need to adjust the turns slightly to fine-tune the impedance match.

Important Considerations:

Core Selection: The ferrite core material should match the operating frequency. For HF applications, type 43 or type 61 ferrite cores are commonly used. Type 43 is more suitable for lower HF (1-30 MHz), and type 61 is better for higher frequencies.
Winding Quality: Ensure that the turns are tightly and uniformly wound around the core, and try to avoid overlapping turns. This will ensure good coupling between the windings and reduce losses.

Summary:

Use a ferrite toroid core and wind a transformer with a turns ratio close to 1.22:1.
Either use the auto-transformer method (single winding with a tap) or the two-winding transformer method to achieve the 1.5:1 impedance transformation.
Fine-tune the winding and test it to ensure a good match at your operating frequency.

Let me know if you’d like more detailed instructions for a particular core or winding style!
